Granule filler

Technical Parameters

Filling Main Unit

10-head combination weigher (conventional mass production model)

Weighing and Filling Range

50g–2000g (5g–3000g customizable)

Metering Accuracy

≤500g: ±0.3–1g; 500–2000g: ±0.5‰–±1‰

Filling Speed

22–35 cans/minute (mixed freeze-dried + granules 22–28 cans/min, pure homogeneous granules 30–35 cans/min)

Single Hopper Volume

1600ml, no-residue memory hopper, preventing material breakage

Control System

PLC + 7-inch touchscreen, 99 recipe groups pre-stored, one-touch switching of weight specifications

Machine Body Material

304 food-grade stainless steel for all material passage parts

Power Supply and Power

220V/2.2KW, air source 0.5–0.6MPa, air consumption 0.06m³/min

Overall Machine Dimensions

1800×1200×2600mm

14-Head Model

Multi-head weigher filling (high-precision mixed-filling premium configuration)

14-Head Weighing

30g–2500g, accuracy ±0.2–0.8g

14-Head Capacity

30–42 cans/minute, preferred for multi-component mixed grains

14-Head Power

2.8KW, other control parameters the same as the 10-head model

Economical Alternative

Four-hopper quantitative scale filling (single pure granule)

Four-Hopper Range and Accuracy

100g–3000g, accuracy ±0.5%

Four-Hopper Speed and Power

40–65 cans/minute, power 1.5KW

Matching Auxiliary Machines

Z-Type Feeding Elevator

Hopper volume 80L, enclosed hopper to prevent granule breakage.
Conveying capacity 800–1500kg/h, frequency-converter speed control.
Power 0.75KW/380V, all 304 stainless steel.
Dimensions 2200×650×3100mm.

Fully Automatic Bottle Unscrambler

Applicable can diameter Φ35–Φ100mm; can height 40–200mm (widening available for non-standard sizes).
Can output speed 25–70 cans/min, frequency-converter adjustable; interlocks with filling to stop when no can is present.
Power 0.5KW/380V, dimensions 1200×1100×1300mm.

Inline Aluminum Foil Sealing Machine

Sealing mouth diameter Φ30–Φ95mm, sealing qualification rate ≥99.8%.
Line speed synchronized with the main unit at 20–45 cans/min, electromagnetic induction sealing.
Power 1.8KW, 220V, air source 0.5MPa.

Fully Automatic Capping Machine

Applicable cap diameter Φ20–Φ80mm, capping torque 5–20N·M adjustable.
Capacity 30–60 cans/min, automatic shutdown when cans are missing.
Power 0.55KW/380V, machine body 1300×750×1500mm.

Automatic Desiccant Packet Dispenser

Optional function.
Packet specifications 1#–5# small desiccant packets, dispensing speed matched to the filling main unit.
Power 0.37KW, linked to the filling machine photoelectric signal.

General Parameters of the Whole Line & Applicable Materials

General Parameters of the Whole Line

Conveyor line: slat conveyor belt at an adjustable height of 900±25mm above the floor, food-grade plastic-steel slats.
Whole line power supply: main incoming line 380V three-phase, total power 6.2–7.8KW (varies between 10-head/14-head).
Air source requirement: unified plant-wide 0.5–0.6MPa compressed air, total air consumption 0.18m³/min.

Applicable Materials

Applicable containers: PET plastic cans, paper tube cans, tinplate round cans (square cans available with customizable mold change).

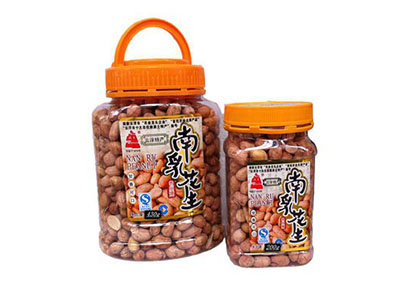

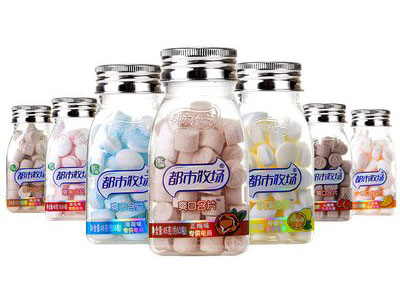

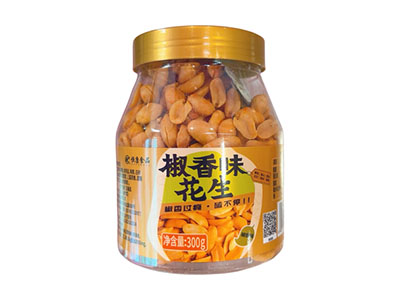

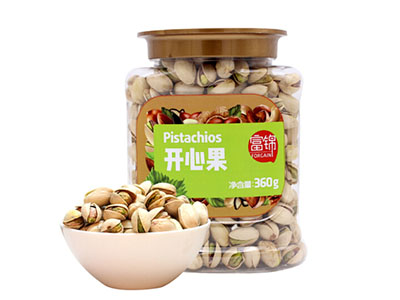

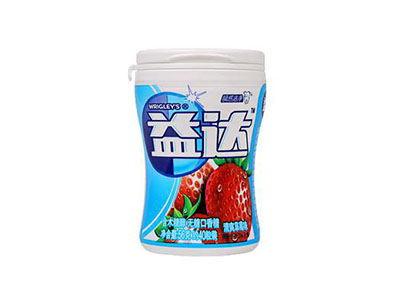

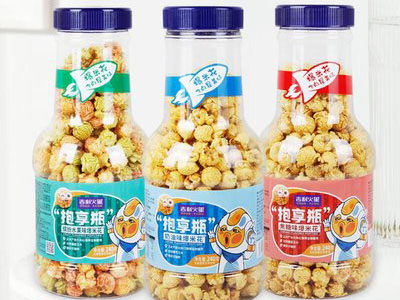

Applicable materials: puffed food, mixed freeze-dried granules, mixed grains, and round/irregular granules.
