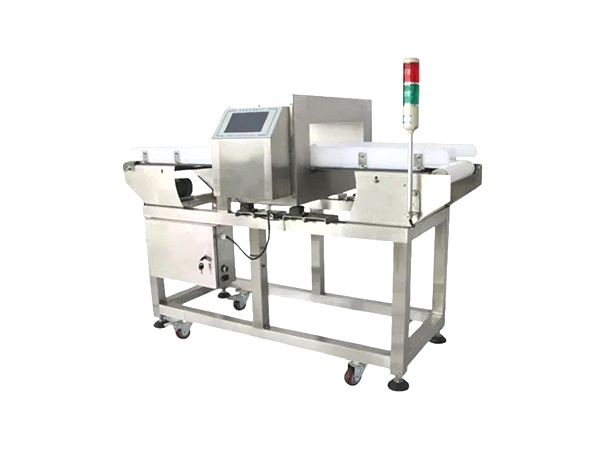

506 slat chain metal detector

Technical Parameters

Model
CS-506
Sensitivity at 100mm Tunnel Height
Iron ball Φ0.6 / 304 stainless steel Φ1.2 / copper, aluminum, lead Φ1.2 mm
Sensitivity at 120mm Tunnel Height
Iron ball Φ0.8 / 304 stainless steel Φ1.5 / copper, aluminum, lead Φ1.5 mm
Sensitivity at 150mm Tunnel Height
Iron ball Φ1.0 / 304 stainless steel Φ2.0 / copper, aluminum, lead Φ2.0 mm
Sensitivity at 200mm Tunnel Height
Iron ball Φ1.5 / 304 stainless steel Φ2.5 / copper, aluminum, lead Φ2.5 mm
Alarm Mode
Automatically stops running when metal foreign objects are detected, with buzzer alarm
Machine Material
Full frame made of 304 stainless steel, complying with HACCP, GMP, FDA, CAS and other standards
Model Type
Standard machine / Non-standard machine (special specifications)
Detection Tunnel Width
Standard machine 450mm; non-standard machine 500-custom non-standard
Sensitivity at 250mm Tunnel Height
Iron ball Φ2.0 / 304 stainless steel Φ3.0 / copper, aluminum, lead Φ3.0 mm
Sensitivity at 300mm Tunnel Height
Iron ball Φ2.5 / 304 stainless steel Φ3.5 / copper, aluminum, lead Φ3.5 mm
Sensitivity at 350mm Tunnel Height
Iron ball Φ3.0 / 304 stainless steel Φ4.0 / copper, aluminum, lead Φ4.0 mm
Sensitivity at 400mm Tunnel Height
Iron ball Φ3.5 / 304 stainless steel Φ4.5 / copper, aluminum, lead Φ4.5 mm
Machine Dimensions
1660×750×1100mm (L×W×H)

Features

Core parts are carefully developed using leading digital technology and original imported chips; the interior of the detection coil is formed in one piece by potting, featuring high detection accuracy, stable performance and strong resistance to external interference.
Multiple frequencies can be used according to product characteristics, and it has a product inspection data storage function, capable of storing more than 10 sets of product inspection data, offering a wide range of applications.
Intelligent recognition technology with self-learning and memory functions, which can automatically recognize and memorize product characteristics and effectively eliminate interference caused by various “product effects”.
Simple and friendly operation interface with a dialogue-style LCD screen; parameters can be set quickly and conveniently through a concise key-control interface; it can detect multiple products containing different product signals (characteristics), and a single setting ensures extremely high detection accuracy without re-adjusting the setup program.
Modular component replacement for convenient and quick maintenance.
Complies with the requirements of HACCP, GMP and FDA.
Shockproof and waterproof design; dustproof and waterproof functions comply with IP-66/IP-65 international certification; shock-resistant and noise-absorbing, able to adapt to harsh working environments.
Various rejection devices (such as flap, air blow, pusher, etc.) as well as lightweight, large-package-specific and heavy-duty body designs can be adopted according to user needs.

Applicable Industries

Food, pharmaceuticals, toys, garments, footwear, chemicals, leather, knitting and other industries, for detecting metal impurities mixed into products or raw materials during production and processing, such as iron and non-ferromagnetic metal objects (non-ferrous metals such as iron, copper, aluminum and stainless steel can all be detected), improving product safety and enhancing corporate product quality.
