【Origin Pic】

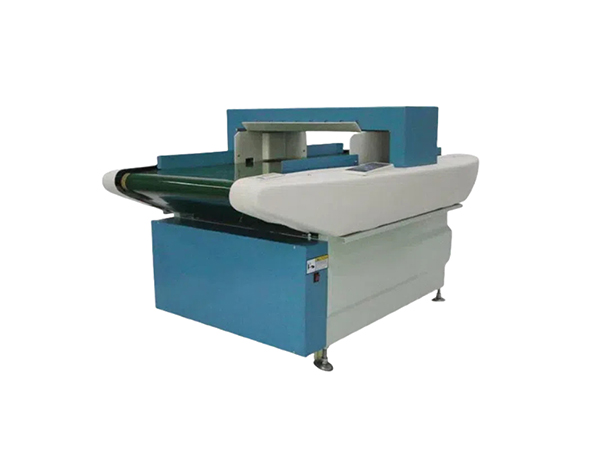

CS-630K High-sensitivity Anti-interference Conveyor Needle Detector adopts Japanese technology, imported core components and food-grade conveyor belt. It is mainly used to detect ferromagnetic metal impurities such as broken needles and iron wires mixed or lost in raw materials or products. When broken needles are detected, it triggers audible and visual alarm, stops, rewinds to the starting point and then resumes operation automatically. It is widely applied in industries requiring removal of ferromagnetic foreign metals, including toys, garments, zippers, metal buttons, shoemaking, leather, knitting and food processing. It serves as essential inspection equipment for export products.

CS-630K garment needle detector

Technical Parameters

Model
SA-630K (taking specification 6012 as an example)
Detection Method
Magnetic field induction
Detection Width
600mm-standard size (customizable)
Detection Height
120mm-standard size (customizable)
Belt Width
560mm
Belt Height Above Ground
690mm
Alarm Mode
Sound and light alarm, stops, reverses and restarts automatically
Sensor Lights
8
Sensitivity Adjustment
0-10 levels adjustable
Power Supply
AC220V, 50-60Hz
Power
100W
Machine Dimensions
1650 (L) × 1050 (W) × 900mm (H)
Net Weight
Approx. 180kg

Features

Adopts Japanese technology, imported core components and a food-grade conveyor belt.
Eight selectable functions: automatic detection, stepless sensitivity adjustment, counting function, automatic induction start, power-saving function, safety protection, and conveyor belt stop or automatic return setting.
Able to withstand long-term operation, achieving a detection efficiency of 100% when used as specified.
When a broken needle or iron object is detected, both sound and light alarms are given, and the machine stops and returns to the starting point, then runs automatically again.
Sensitivity adjustable from level 0 to 10, with a light-touch operation panel that is extremely simple to use.
Counting function, distinguishing passed good products from defective products.
The machine has date and time display functions, showing the year, month and time.
According to different inspection requirements, dual ten-segment 0-10 level displays are provided for sensitivity and induction.
Advanced intelligent program control system, allowing the reversing time and distance of the conveyor belt to be set when metal is detected.
Dual detection function; compared with needle detectors of other types, sensitivity is increased by 10% at the same detection height.
Equipped with both B-type and C-type detection functions as well as automatic and manual setting functions.
Eight-point light display showing the exact position of broken needles.

Application Industries

Garment production, plastic toy processing, shoe materials, bedding, metal buttons, zipper pullers, EPE foam, chemical and rubber raw materials, food production, pharmaceutical manufacturing, fishery processing, meat processing and other industries requiring metal foreign object detection.

Packaging Samples
