【Origin Pic】	Multi-lane powder packing machine is a multi-channel parallel automatic packaging equipment. It is specially designed for powder materials such as coffee powder, milk powder, seasonings, Chinese herbal powder and meal replacement powder. It can complete measuring, bag making, filling, sealing, cutting and coding simultaneously. Its efficiency is 4–12 times that of single-lane machines.

[View Original] [BACK]

[Previous] [Next]

Powder multi-lane packer

Core Technical Parameters

Number of Lanes

2/4/6/8/10/12 lanes (customizable)

Packaging Speed

30-60 bags/min per lane; 120-720 bags/min total for multi-lane

Metering Range

0.5-100g (commonly 1-50g)

Metering Accuracy

±1%-±3% (±1% for free-flowing powders, ±2%-3% for dusty powders)

Bag Width

14-90mm (strip packs 17-30mm, four-side seal 50-120mm)

Bag Length

40-180mm (adjustable)

Bag Types

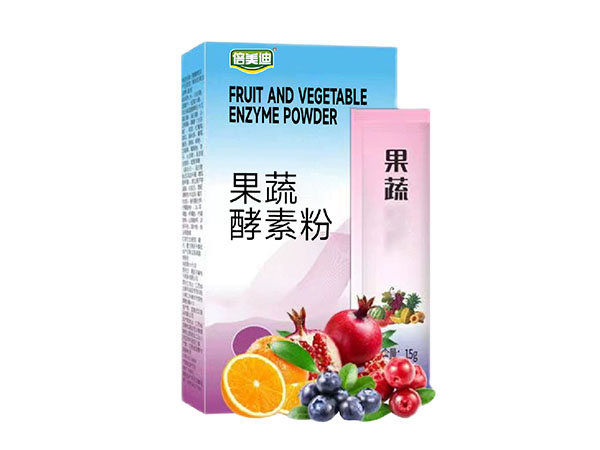

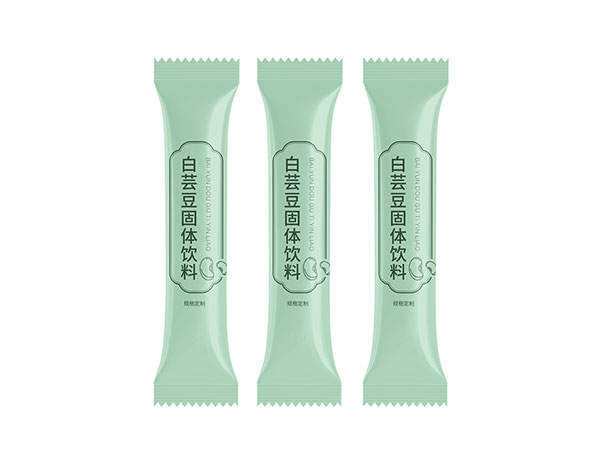

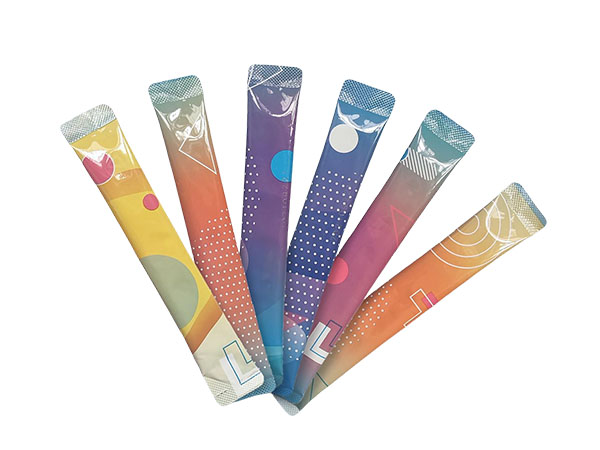

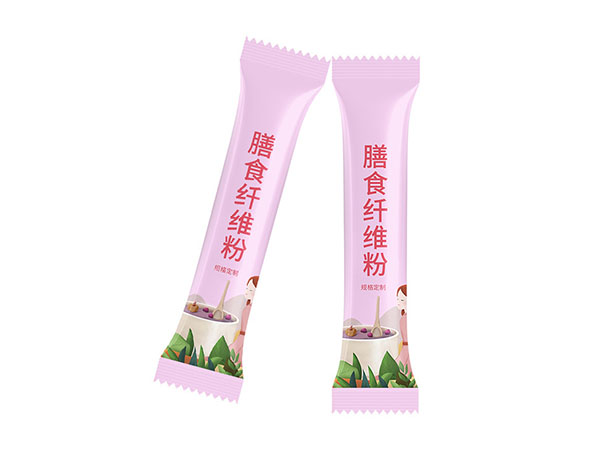

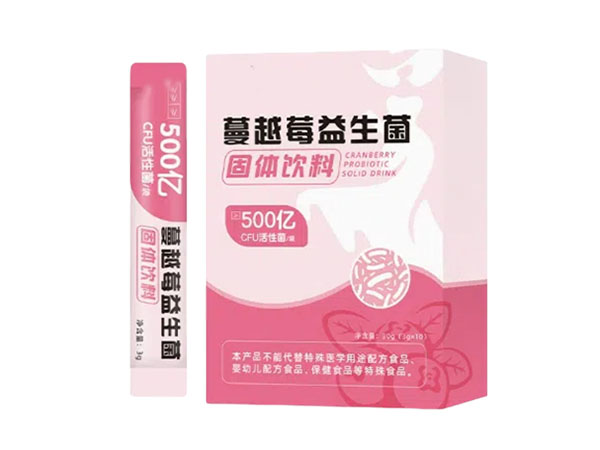

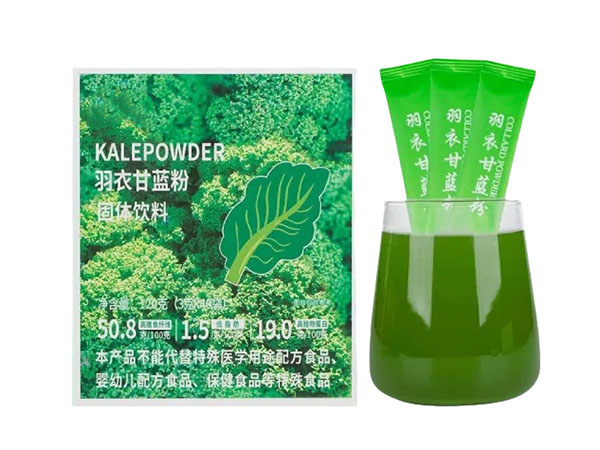

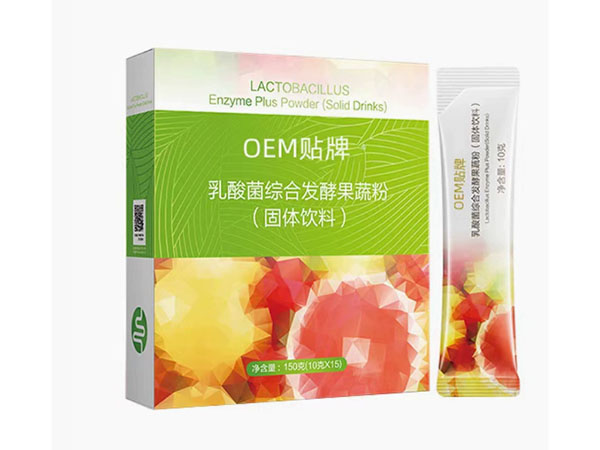

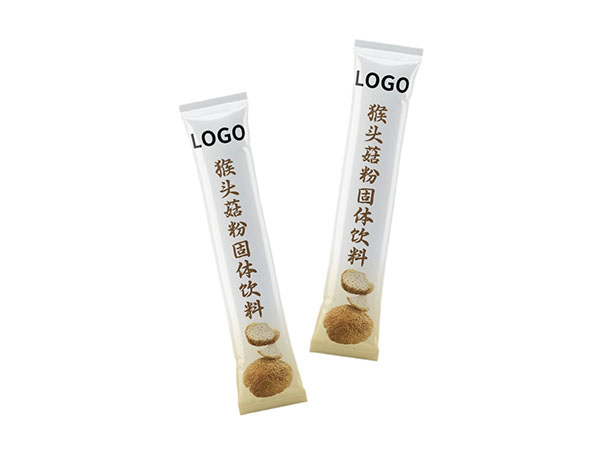

Back-seal strip pack, three-side seal, four-side seal, round corner / serrated / easy-tear notch

Packaging Materials

PET/PE, OPP/PE, aluminum foil laminated film.
Thickness 0.07-0.10mm, max film width 280-680mm.

Power Requirements

220V/380V, 50Hz, 3.5-7kW

Air Source Requirements

0.6-0.8MPa, air consumption 0.6m³/min

Overall Dimensions

Approx. 1400×900×2000mm

Overall Weight

500-800kg

Working Principle & Performance Features

Main Components

Storage hopper + vacuum feeder: automatic feeding, dust-proof.
Multi-lane auger metering system: servo-controlled, independent fine adjustment per lane, precise dosing.
Forming device + film pulling mechanism: film slitting, forming, traction.
Heat sealing system: vertical sealing + horizontal sealing, adjustable temperature 120-180℃.
Cutting mechanism: flat / round-corner / serrated cutting.
Finished product conveyor: outputs and collects finished products.

Working Process

Feeding: powder is fed into the hopper by the vacuum feeder and enters the multi-lane auger chamber.
Metering: the servo auger rotates for precise dosing, with all lanes discharging synchronously.
Bag making: the packaging film is slit, formed, and vertically sealed into a continuous bag tube.
Filling & sealing: material drops into the bag → horizontal sealing → coding (date / batch number).
Cutting & discharging: the cutter cuts, finished products are output, completing the cycle.

Performance Features

High efficiency: 4 lanes ≈ 4× single-lane speed, suitable for mass production.
High-precision metering: servo auger + closed-loop control, stable error ≤±2%.
Dust-proof and leak-proof: fully sealed design with vacuum feeding, reducing dust emission.
Quick changeover: bag length / width / weight switched within 15 minutes, flexible production.
Intelligent control: touchscreen operation, one-key parameter saving, fault alarm, counting statistics.
Safety & hygiene: material-contact parts made of 304/316 stainless steel, compliant with food/pharmaceutical GMP.

Equipment Advantages

Multi-lane parallel design multiplies packaging efficiency;
Supports various bag types, adaptable to different powder materials;
Stable operation, easy maintenance;
Number of lanes customizable to meet different capacity requirements.
