Oral tobacco multi-lane packer

Technical Parameters

Number of Lanes

2/4/6/8/10/16 lanes (customizable)

Packaging Speed

25-40 packs/min per lane; 100-500 packs/min total for multi-lane

Metering Range

0.2-1g per pack (commonly 0.5-0.7g)

Metering Accuracy

±2%-±5% (≤±5% for wet materials)

Applicable Materials

Nicotine pouches, lip pouches, moist snuff, fine powder with 8-45% moisture content

Bag Types

Back-seal strip pack (most common), three-side seal

Bag Width

12-15mm (standard 13mm)

Bag Length

25-100mm (commonly 35-50mm)

Film Width

Max 180-750mm (depending on the number of lanes)

Packaging Material

PET/AL/PE, OPP/PE laminated film (moisture-proof and light-shielding)

Power Supply

220V/380V, 50/60Hz, 1.5-4.5kW

Control

PLC + touchscreen, servo bag pulling, photoelectric color-mark tracking

Air Pressure

0.6-0.8MPa, air consumption 16-20L/min

Machine Dimensions

Approx. 1600×1300×2200mm

Material

Material-contact parts in 316 stainless steel, frame in 304 stainless steel (food grade)

Weight

400-800kg

Key Features

Anti-blockage discharge: blowing turntable + air nozzles dedicated to wet materials, high-pressure airflow prevents sticking and blockage.
Micro precise dosing: short auger + fling-type / pneumatic piston, suitable for ultra-small doses of 0.2-1g.
High-moisture adaptability: handles wet powder with 10-30% moisture content, non-sticky, no clumping.
Strong sealing: ultrasonic horizontal sealing + heat back sealing, moisture-proof, leak-proof, no material pinching.
High speed and stability: 6 lanes up to 240 packs/min, suitable for annual output of over 30 million packs.
Easy to clean: fully sealed + quick-release structure, 316 stainless steel, meets hygiene standards.

Working Process

Feeding (vacuum suction) → multi-lane auger / piston metering → bag forming → vertical sealing → discharge and filling → horizontal sealing (coding) → cutting → finished product output.

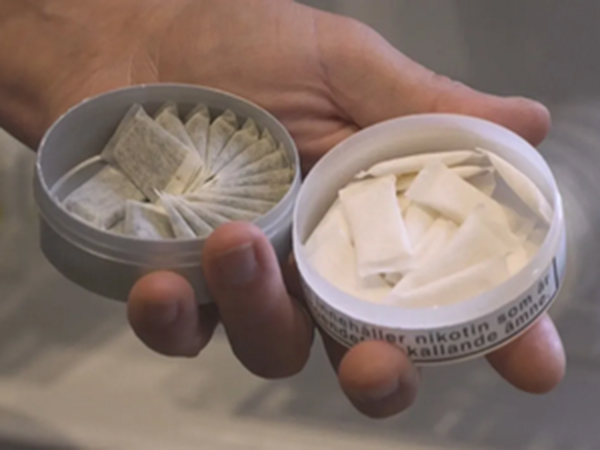

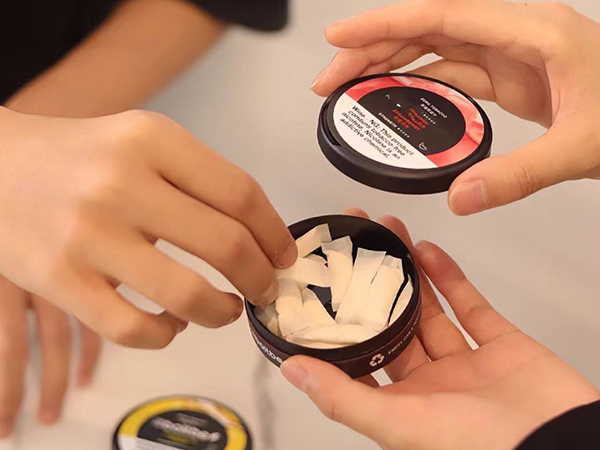

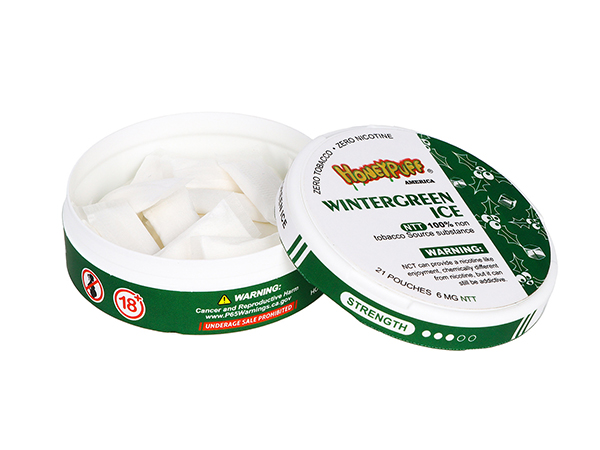

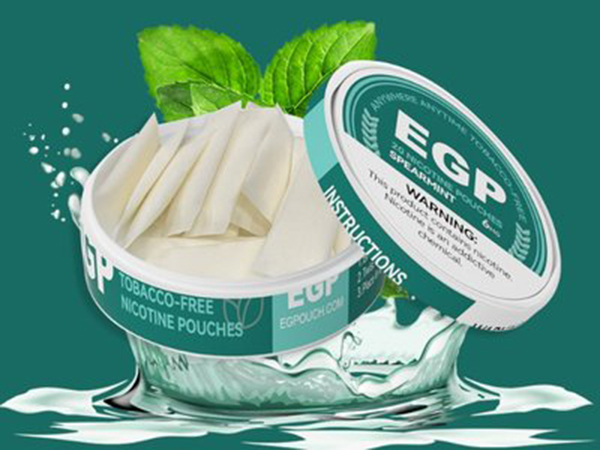

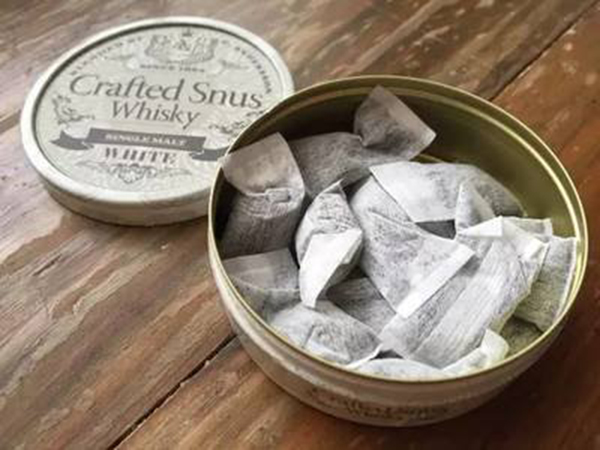

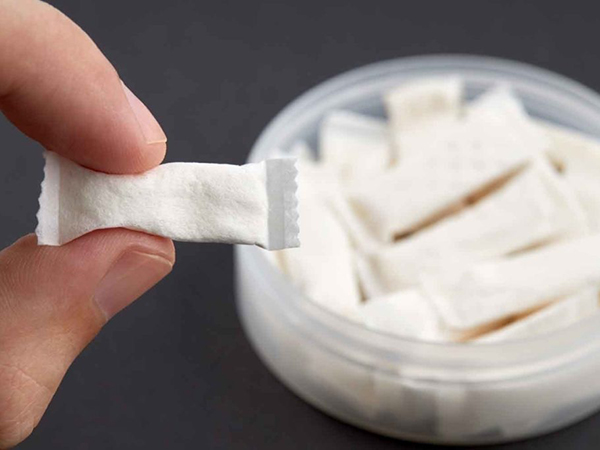

Packaging Samples
