【Origin Pic】

Semi-auto tape roll sleeve packer

Technical Parameters

Equipment Model
CS-500B Semi-Automatic Tape Roll Sleeve Packaging Machine
Scope of Application
Diameter Ø10-185mm, height H50-400mm
Packaging Speed
21 rolls/minute
Voltage and Power
Single-phase AC200-240V, 50-60Hz, 400W
Air Source Pressure
5kg
Machine Dimensions
1200(L)×1100(W)×1720(H)mm
Net Weight
200kg
Packaging Film
PVC, POF heat shrink film

Equipment Advantages

Patented design with cold-seal cutting technology, producing flat and fine seals; the sealing blade runs without heat and does not stick to material.
Daily power consumption of about 3 kWh, extremely energy-efficient.
Patented design with adjustable width and diameter, convenient and quick, suitable for packaging products of different widths.
Packaging speed of up to 21 rolls per minute.
Film feeding uses an accumulator-type structure for stable film feeding that is guaranteed not to deviate.
Positioned discharge ensures the package stays tight.
All-steel structure for the whole machine, stable and sturdy.

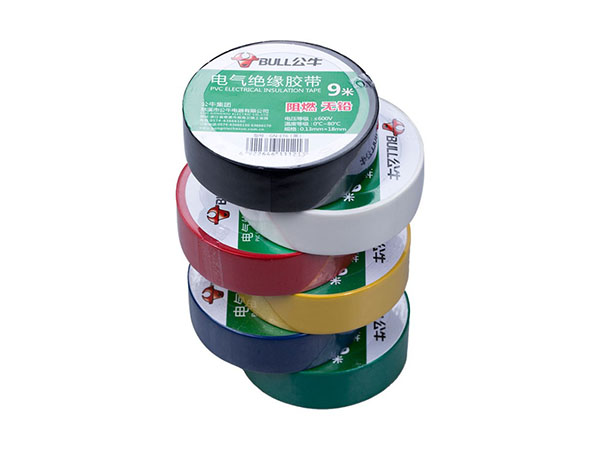

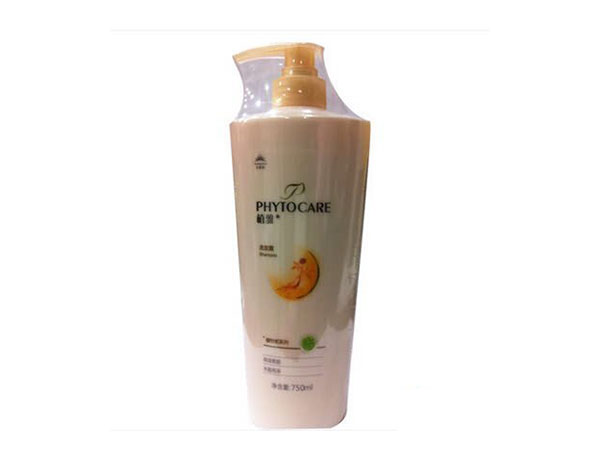

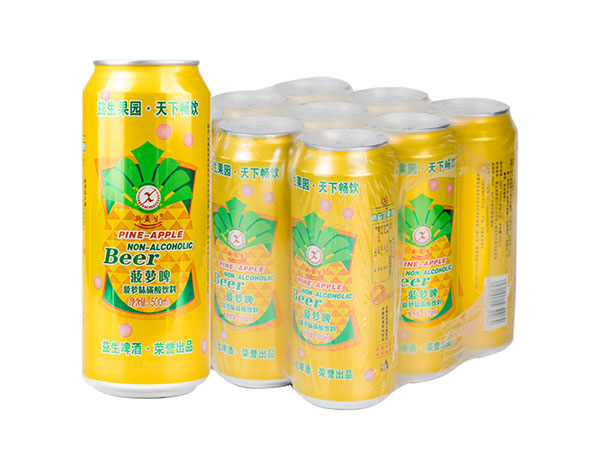

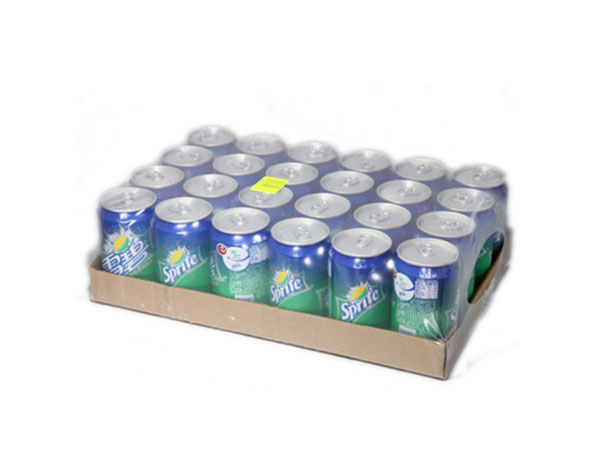

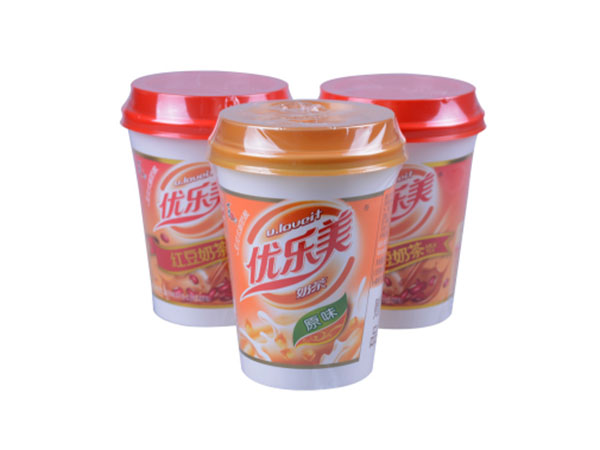

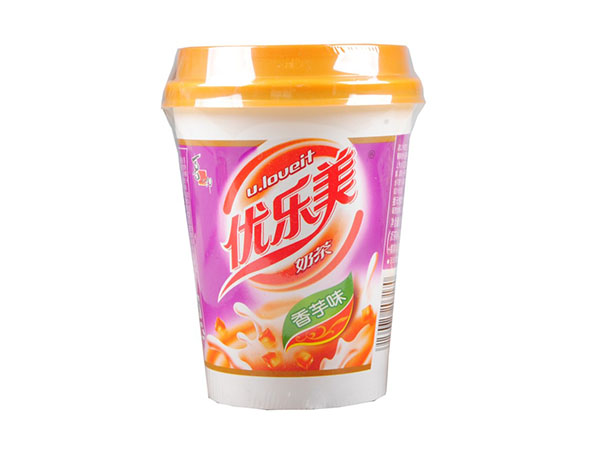

Packaging Samples
