    Your position  Home -> Products  ->  Vertical packer  ->  Cup dosing packer

    【Origin Pic】

    Cup dosing packer

    Technical Parameters

    Equipment Model
    CS300K
    Metering Method
    Measuring cup metering
    Production Efficiency
    30-60 packs/minute (depending on material weight)
    Packaging Weight
    1-200g (depending on material characteristics)
    Packaging Deviation
    ±0.2g (depending on material characteristics)
    Bag Width
    20mm-280mm
    Bag Length
    30mm-170mm
    Control System
    PLC controller + color touchscreen
    Sealing Method
    Back seal, three-side seal, four-side seal
    Sealing Pattern
    Stripe, mesh, plain
    Applicable Packaging Materials
    PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP, etc.
    Equipment Material
    Stainless steel (carbon steel) frame
    Equipment Power Supply
    220V/50Hz/1.6kW
    Air Consumption
    0.2m³/min
    Machine Dimensions
    950mm×710mm×1600mm
    Machine Weight
    350kg

    Optional Packaging Machine Configurations

    ⭐Air inflation device
    ⭐Air exhaust device
    ⭐Coding machine
    ⭐Round corner punching
    ⭐Feeder

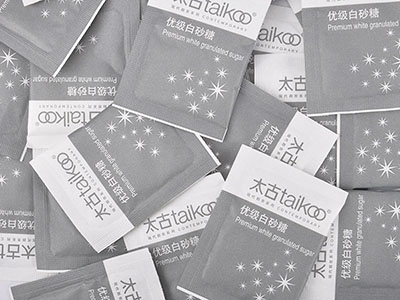

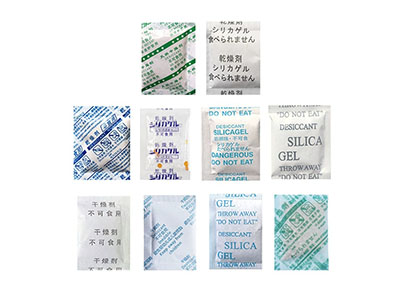

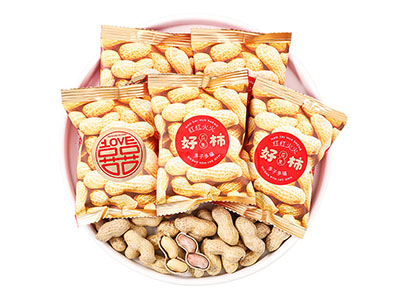

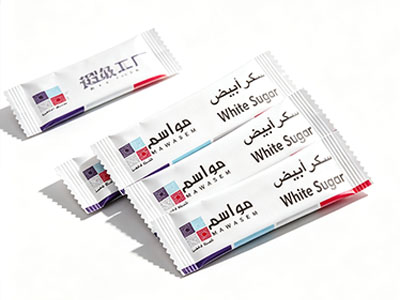

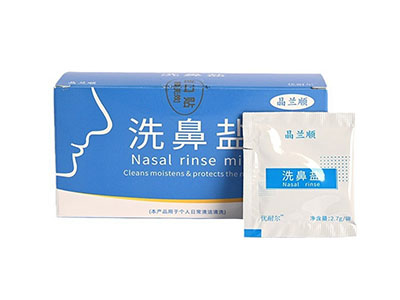

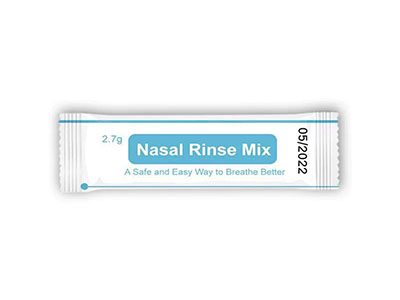

    Packaging Samples
