    Your position  Home -> Products  ->  Vertical packer  ->  Liquid packer

    【Origin Pic】

    Liquid packer

    Technical Parameters

    Equipment Model
    CS300Y
    Metering Method
    Pump metering
    Production Efficiency
    30-60 packs/minute (depending on material weight)
    Packaging Weight
    1-200g (depending on material characteristics)
    Packaging Deviation
    ±0.2g (depending on material characteristics)
    Bag Width
    20mm-280mm
    Bag Length
    30mm-170mm
    Control System
    PLC controller + color touchscreen
    Sealing Method
    Back seal, three-side seal, four-side seal
    Sealing Pattern
    Stripe, mesh, plain
    Applicable Packaging Materials
    PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP, etc.
    Equipment Material
    Stainless steel (carbon steel) frame
    Equipment Power Supply
    220V/50Hz/1.5kW
    Air Consumption
    0.5m³/min
    Machine Dimensions
    1050mm×710mm×1620mm (L×W×H)
    Machine Weight
    350kg

    Optional Packaging Machine Devices

    ⭐Air inflation device
    ⭐Air exhaust device
    ⭐Coding machine
    ⭐Round corner punching
    ⭐Feeder

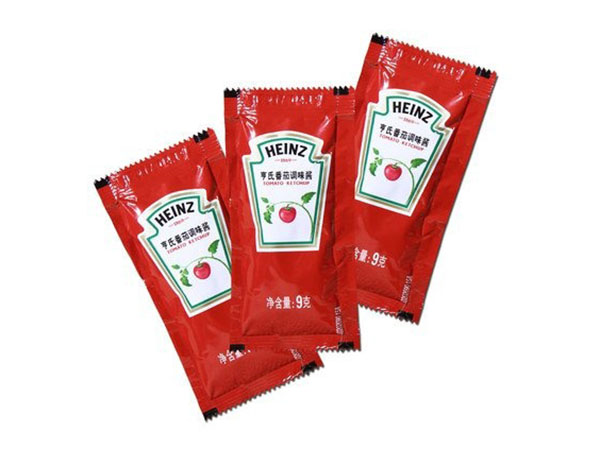

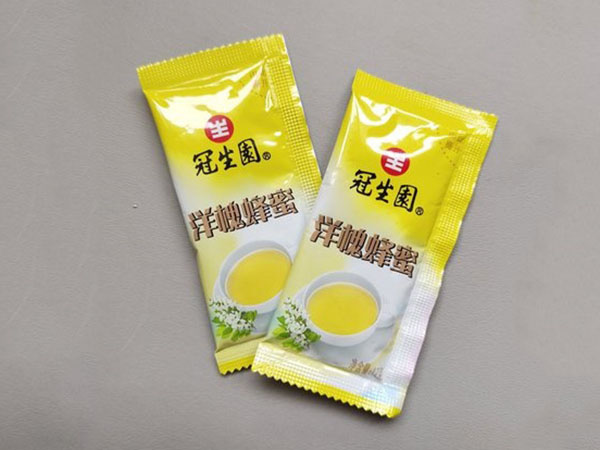

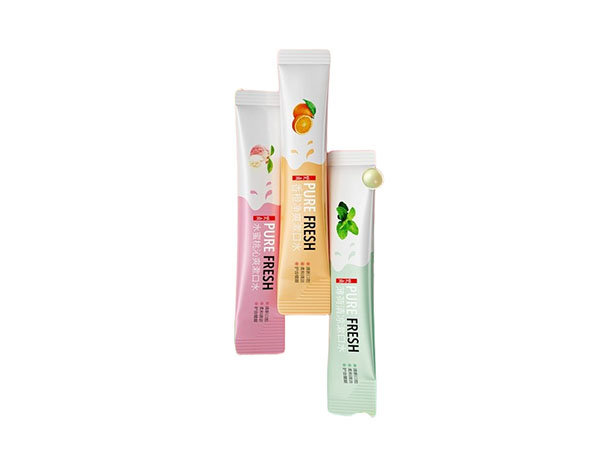

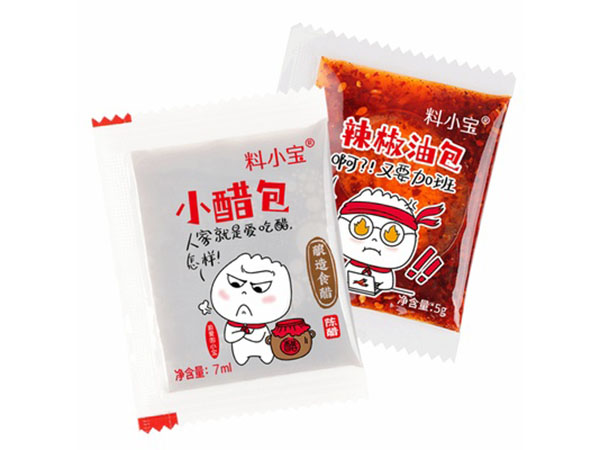

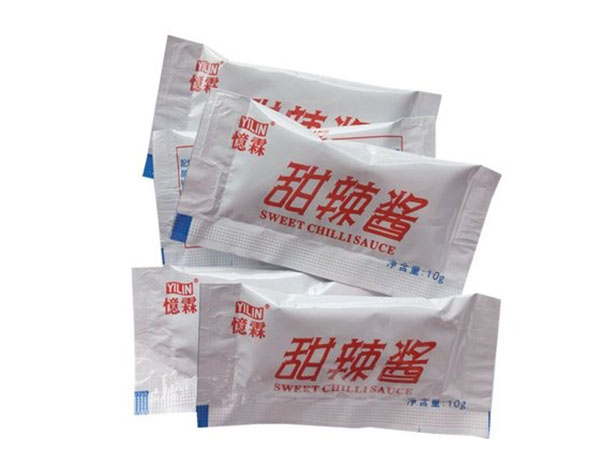

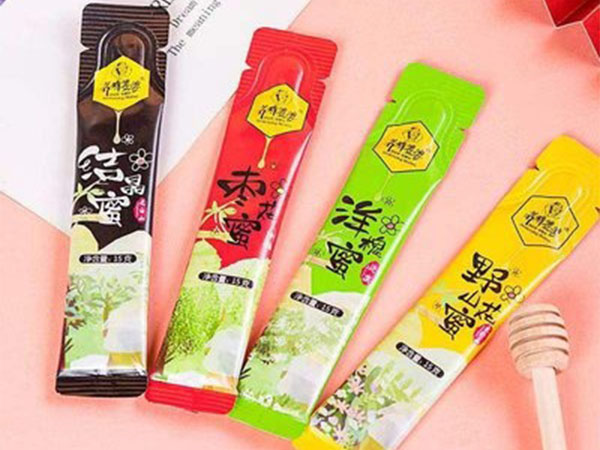

    Packaging Samples
