Equipment Overview

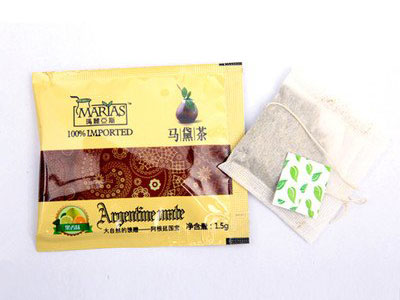

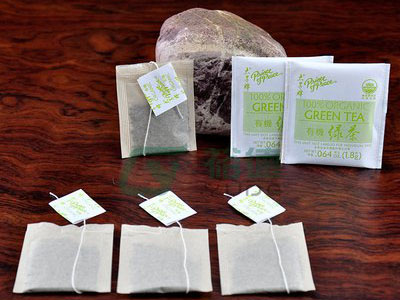

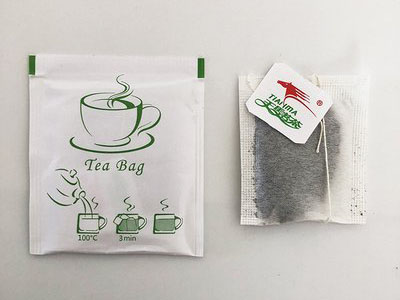

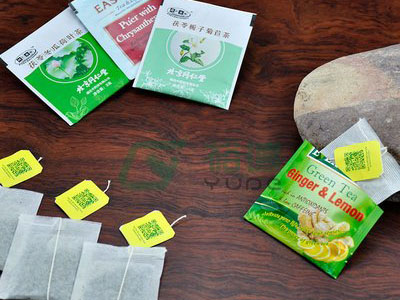

This machine is a fully automatic three-side seal inner and outer bag integrated tea bag packaging machine. The machine continuously completes the entire process of material metering, inner bag forming, thread threading and tag attaching, inner bag discharge, outer bag three-side seal bag making, and heat sealing and cutting. The finished product is a filter paper inner bag + composite outer bag independent three-side seal tea bag, produced fully automatically on a single machine without manual secondary bagging. Material contact surfaces are made of 304 food-grade stainless steel. The inner and outer bags use independent film control by stepper motors, combined with PID zoned temperature control, producing flat and tight three-side seals that do not leak material. It is equipped with a PLC + color touchscreen control system that stores multiple production recipes for convenient changeover and adjustment. The outer bag is equipped with photoelectric eye mark registration for precise alignment of printed bag patterns. It is suitable for mass production of various broken teas, herbal teas, health substitute teas, and traditional Chinese medicine tea bags.

Product Features

Uniform Three-Side Seal Finished Product: the inner bag filter paper seal and the outer bag composite film both use the three-side seal process, giving a regular and consistent bag shape that matches conventional tea bag packaging styles on the market.
Dual Independent Film Paths: two sets of stepper film-pulling mechanisms for the inner and outer bags, making bag length fine adjustment convenient with small dimensional errors.
Precise Constant-Temperature Heat Sealing: zoned independent temperature control system, suitable for heat sealing of filter paper, kraft paper, aluminum foil film, and other materials, without burn-through or material clamping problems.
Intelligent Fault Reminder: automatic shutdown and alarm for material shortage or missing film, reducing raw material and packaging material loss.
Hygiene Compliance: all parts contacting tea leaves are stainless steel, complying with food production hygiene standards.

Applicable Materials

Black tea, green tea, oolong broken tea, chrysanthemum and rose herbal teas, red bean and coix seed health teas, and various traditional Chinese medicine crushed-material substitute teas.

Applicable Packaging Materials

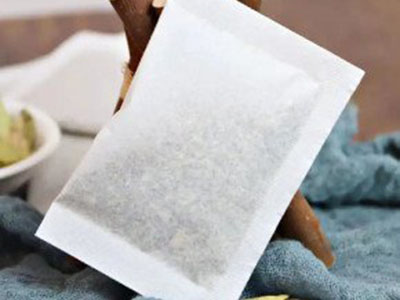

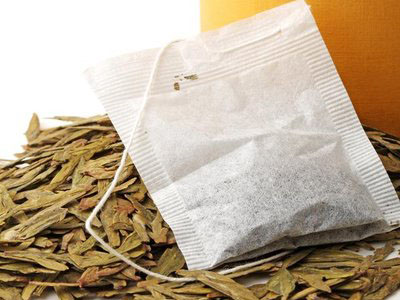

Inner bag: food-grade filter cotton paper.
Outer bag: kraft paper, OPP/CPP composite film, aluminized film, aluminum foil composite heat-seal film.

Ink wheel coding machine: prints production date and batch number on the outer bag.
Easy-tear notch cutting device: cuts easy-tear notches in the outer bag.
Automatic feeder: enclosed material storage with automatic loading.
